Solid State Relays

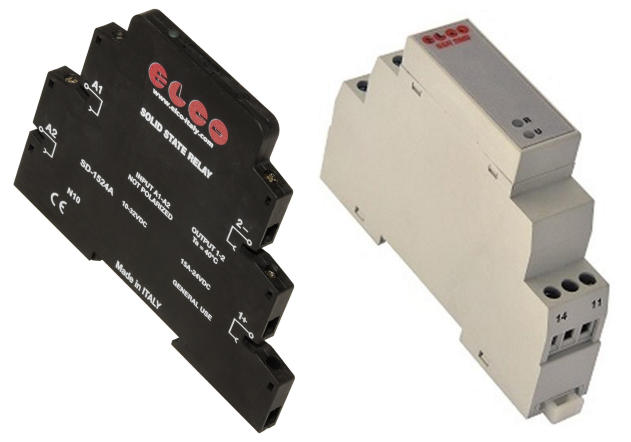

DIN-rail solid-state relays combine electronic switching with convenient control-panel installation. The range includes ultra-slim interface relays for PLC applications as well as higher-power SSRs with integrated heat sinks for direct switching of industrial loads.
Compact SD/SA series interface relays provide AC or DC switching in a slim DIN-rail package, with output ratings up to 8 A DC or 6 A AC. AC versions feature zero-crossing switching, while DC versions provide instantaneous switching.

For applications requiring additional load protection, the SDP/SAP series incorporates electronic protection against conditions such as short circuit, overload, overcurrent and overtemperature, depending on the version. These modules are only 6.5 mm wide and are available up to 10 A for DC loads. Elco Italy
Key Features
- Direct 35 mm DIN-rail mounting
- Ultra-slim interface SSR options
- AC and DC load switching
- LED status indication
- Zero-crossing AC switching
- Instantaneous DC switching
- Input/output electrical isolation
- Electronic load protection on selected models

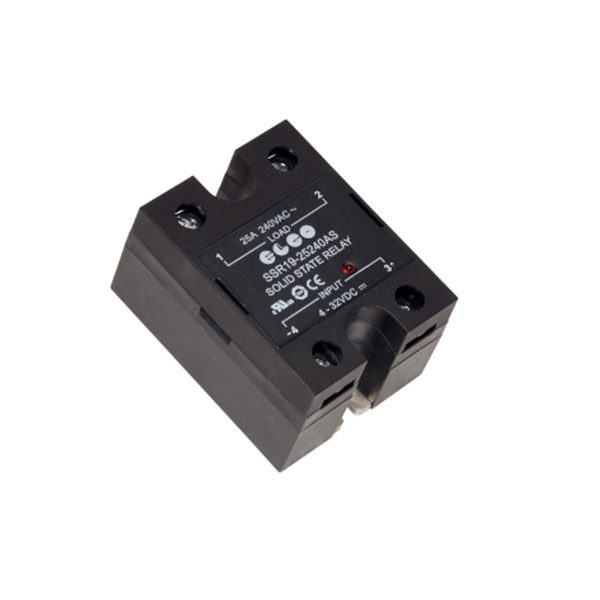

- High-current versions with integrated heat sinks
- Single- and three-phase solutions

Typical Applications:
PLC Interfaces · Control Cabinets · Machine Automation · Heating Systems · Solenoid Control · High-Cycle Switching · Process Equipment

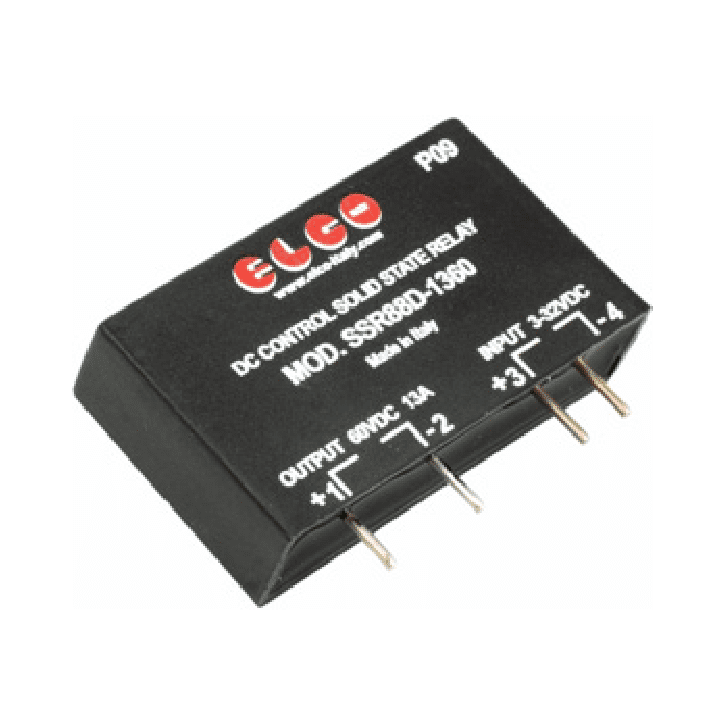

PCB-mounted solid-state relays provide compact, reliable electronic switching for direct integration into control boards and electronic equipment.
Available in multiple footprints, input ranges and AC or DC output configurations, these relays provide electrical isolation between control electronics and switched loads while eliminating the mechanical wear associated with conventional electromechanical relays.
The portfolio includes ultra-slim 5 mm SSR01/SSR02/SSR05 devices as well as higher-current SSR21, SSR22 and SSR30/31 families for applications requiring greater switching capability. Elco Italy

Key Features
- Direct PCB installation
- Compact footprint
- Ultra-slim designs available
- AC and DC output versions
- High switching speed
- Low control power
- Galvanic input/output isolation
- Zero-crossing AC switching on selected models
- High-current DC switching options
- Pin-compatible alternatives to electromechanical relays available
- UL-certified models available

Typical Applications:
Control Boards · Industrial Electronics · PLC I/O · HVAC Controls · Appliances · Machine Controllers · Electronic Equipment · OEM Products
